HDBaseT Matrices
Showing all 4 resultsSorted by latest
-

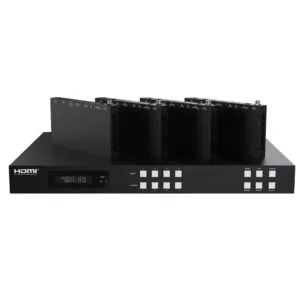

Matrices4K@60hz 4:4:4 HDMI HDBaseT 150m Matrices with Audio de-embedding and ARC
Model: MA-HB-HD0404L
- Inputs: 4 x HDMI Type A
- Outputs: 4 x HDMI Type A,4 × HDBaseT port,4× Coaxial audio, 4 × balanced analog audio
- Controls: 5 x IR IN,5x IR OUT 1 × TCP/IP,1 × RS-232
- HDBaseT Receiver
Input: 1 x HDBT IN
Outputs: 1 x HDMI Type A,1 x AUDIO OUT
Controls: 1 x IR IN,1 x IR OUT, 1 x RS-232,1 x SERVICE
-
Matrices4K@60hz 4:4:4 HDR HDBaseT 100m Matrices with Audio de-embedding and ARC
Model: MA-HB-HD0404S
- Input：4×INPUT,6×IR INPUT,2×Stereo Audio, 1×SPDIF, 1×SPDIF
- Output：4×HDMI OUTPUT,4×HDBaseT port,5×IR OUTPUT,4×RS-232 ,4×SPDIF,4×Stereo Audio,1×LAN
- Control：1×TCP/IP,1×RS-232
- HDBaseT Receiver
Input Ports：1×HDBaseT IN,1×IR IN
Output Ports：1×HDMI OUT,1×IR OUT
Control Ports：1×SERVICE,1×RS-232
-

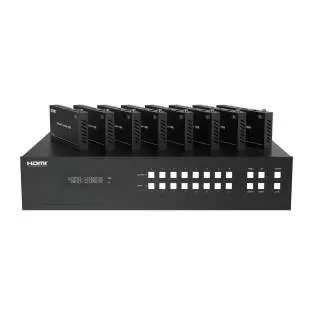

HDBaseT Matrices4K@60hz 4:4:4 8×8 HDBaseT 150m Matrices with Audio de-embedding and ARC
Model: MA-HB-HD0808L
- Input:8 x HDMI Type A,Outputs: 8 x HDMI Type A,8 × HDBaseT port,4× Coaxial audio,8 × balanced analog audio
- Controls: 9 x IR IN,5x IR OUT ,1 × TCP/IP,1 × RS-232
- HDBaseT Receiver
Input:1 x HDBT IN
Outputs: 1 x HDMI Type A,1 x AUDIO OUT
Controls: 1 x IR IN,1 x IR OUT,1 x RS-232,1 x SERVICE
-
Matrices4K@60hz 4:4:4 HDR HDBaseT 100m Matrices with Audio de-embedding and ARC
Model: MA-HB-HD0808S
- Input：8×INPUT,10×IR INPUT,2×Stereo Audio,1×SPDIF,1×SPDIF
- Output：8×HDMI OUTPUT, 8×HDBaseT port,9×IR OUTPUT,8×RS-232,8×SPDIF,8×Stereo Audio,1×LAN
- Control：1×TCP/IP,1×RS-232
- HDBaseT Receiver
Input Ports: 1×HDBaseT IN,1×IR IN
Output Ports: 1×HDMI OUT,1×IR OUT
Control Ports: 1×SERVICE,1×RS-232 ,2×LAN
